High energy high intensity foucused ultrasound face lifting and body sliming machine
comment:0
Functions: Anti-Puffiness, Skin Tightening, Wrinkle Remover
Handles: work head 1: DS-4.5mm(standard confifuration)  work head 2: DS-3.0mm(standard confifuration)    work head 3: DS-1.5mm(optional)
Model Number: FU4.5-2S
Product Detail
Review(0)

Facial skin tightening high intensity focused ultrasound for wrinkle removal

Product Description

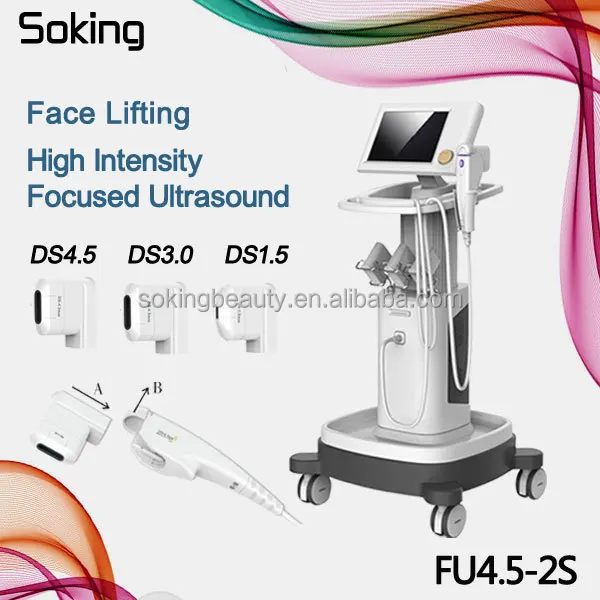

FU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removal

High Intensity Focused Ultrasound Advantage

- Instead of the traditional surgical face lift with a non-invasive technique.
- Tighten sagging skin,improve sagging and other signs of aging.- With a special transmitter,transmission from the skin surface conduction of high-energy focused ultrasound to the SMAS layer.- In the skin layer to produce the specified target multiple temperatures above 65-70 degrees in short time or above sonic focus high energy,forming”heat cure” area,the focus cells are solidified,then ablation,fascia speedy improvement,to achieve cosmetic wrinkle effect.- Non-invasive,no time to rest after surgery,ultrasound without injections,no surgery,no trace wrinkle skin rejuvenation.- Fit any age,both men and women.- Equipped with a variety of different levels of energy emission transmitter skin,the high-energy focused ultrasound transmitted to the skin layers.- Proprietary high-speed transmission technology of 0.1-0.25- Up to 15000 lines of a layered high-precision emitter transmitter is three times that of similar instruments,greatly improving the cost effectiveness.- Exclusive development of stable output 4-10MHZ broadband technology that fits well with layered skin treatment technology.

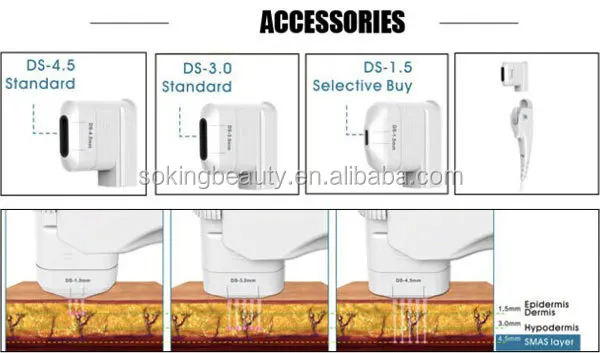

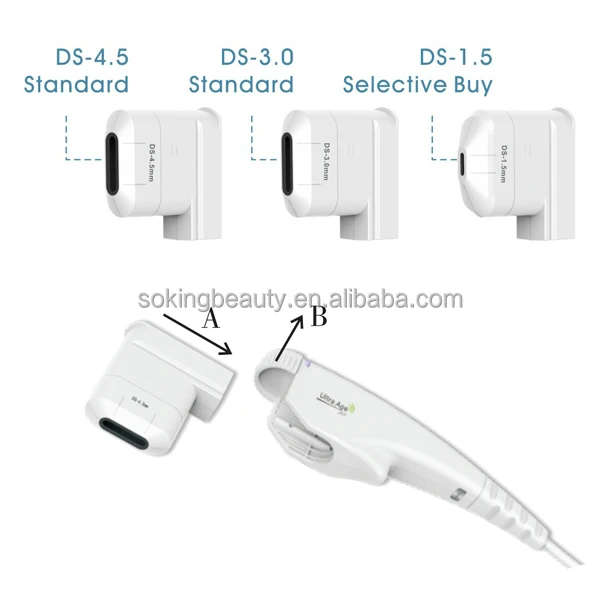

Layered Energy emission transmitter

1. DS-4.5D 4MHZ frequency used to transmit high- energy focused ultrasound to the skin, subcutaneous tissue, the ultrasound to penetrate the skin to a depth of 4.5mm, direct subcutaneous SMAS layer, forming “heat coagulation” regional, targeted to thicker skin, such as cheeks, etc.

2. DS-4.5S 7MHZ frequencies used to transmit high-energy focused ultrasound to the skin, subcutaneous tissue, the ultrasound to penetrate the skin to a depth of 4.5mm, direct subcutaneous SMAS layer, targeted to thinner skin, such as the forehead, thin and neck.

3. DS-3.0 8Mkhz frequency for transmitting high frequency of 8 MHZ focused ultrasound energy into the dermis layer of the skin tissue,the ultrasound to penetrate the skin to a depth of 3.0mm,is responsible for activating the skin’s dermal layer of collagen,effectively enhance the effect of the consolidation of the outline,but also improve large pores and reduce the appearance of wrinkles.

4. DS-1.5 10MHZ frequency used to transmit high-energy focused ultrasound to the epidermis tissue,the ultrasound to penetrate the skin to a depth of 1.5mm,is responsible for activating the skin epidermis in thinner tissue.

FU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removal

FU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removal


High Intensity Focused Ultrasound Skin tighten process

1. Skin cleaning
2. Take photo and mart the treat skin area
3. Pt gel as a conductor between the transmitter and the skin
4. Mark the treating area,such as around the chin,neck,both sides of the plane
5.Pay attention to avoid the edge of the chin nerve(marginal mandibular nerve) and supraorbital never(supra orbital nerve) area
6. After completion,and no recovery period,can use skincare products and make-up
7. Just once,the full effect will gradually appear in 2-3 months time

The System can not be for use in patients with
1. open facial wounds or lesions
2. severe or cystic acne on the face and/or neck
3. metal stents/implants in the face and neck area
4. mechanical implants
5. implantable electrical devices
6. an active systemic or local skin disease that may alter wound healing

What's the technical specifications of this machine ?

Input VoltageAC 100V-230V 50Hz-60Hz
Power<160VA
Ultrasound wavelength4MHz 8MHz 10MHz
Output Power0.2 to 2.0J (0.1J/STEP)
Focus spacing1.0 to 10mm (0.5mm/STEP)
Focal zone length5.0 to 25mm (0.5mm/STEP)
TransducerDS-4.5D, DS-3.0, DS-1.5
GW40KG
Packign size (carton case)67*67*104 cm

  High Intensity Focused Ultrasound

FU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removalFU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removal

FU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removal

FU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removalFU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removal

Packaging & Shipping

It is 68*68*112cm by carton package

The shipping by express DHL,FEDEX,UPS,EMX,TNT and so on

      also can by air to airport

                   by sea

FU4.5-2S Facial skin tightening high intensity focused ultrasound for wrinkle removal



Focus,Professional
Company Profile
Our main produce Liposunic,cryotherapy,
lipolaser,cavitation,RF,pressotherapy,
high intensity focused ultrasonic,fractional RF,
Oxygen Jet peel,microdermabrasion,
PDT LED skin care ,Elight,IPL,SHR,
laser 808 hair removal,
nd yag laser tattoo removal machine.
